Page 4 - 襯套
P. 4

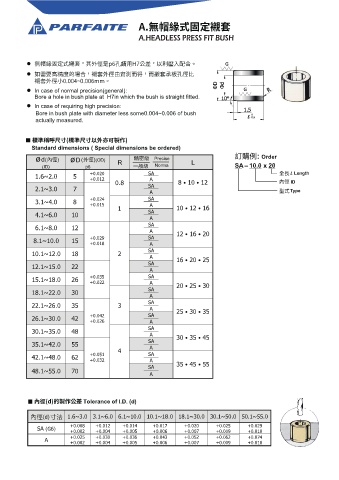

A.無帽緣式固定襯套
                                                  A.HEADLESS PRESS FIT BUSH




          ●  無帽緣固定式襯套,其外徑是p6孔請用H7公差,以利壓入配合。
          ●  如需要高精度的場合,襯套外徑由實測而得,而襯套承板孔徑比
             襯套外徑小0.004~0.006mm。
          ●  In case of normal precision(general):
             Bore a hole in bush plate at  H7in which the bush is straight fitted.
          ● In case of requiring high precision:
              Bore in bush plate with diameter less some0.004~0.006 of bush   thanO.D.
              actually measured.


            標準稱呼尺寸(標準尺寸以外亦可製作)
            Standard dimensions ( Special dimensions be ordered)
              ød(內徑)      øD (外徑)(OD)     R     精密級    Precise      L              訂購例: Order
                (ID)           p6               一般級    Norma                       SA– 10.0 x 20
             1.6~2.0       5     +0.020  0.8         SA         8˙10˙12                            全長 l Length
                                 +0.012
                                                      A
                                                                                                   內徑 ID
             2.1~3.0       7                         SA
                                                      A                                            型式 Type
             3.1~4.0       8     +0.024   1          SA        10˙12˙16
                                 +0.015
                                                      A
             4.1~6.0      10                         SA
                                                      A
             6.1~8.0      12                         SA        12˙16˙20
                                                      A
             8.1~10.0     15     +0.029              SA
                                 +0.018
                                                      A
                                                     SA
            10.1~12.0     18              2
                                                      A        16˙20˙25
            12.1~15.0     22                         SA
                                                      A
            15.1~18.0     26     +0.035              SA        20˙25˙30
                                                      A
                                 +0.022
            18.1~22.0     30                         SA
                                                      A
            22.1~26.0     35              3          SA        25˙30˙35
                                                      A
            26.1~30.0     42     +0.042              SA
                                                      A
                                 +0.026
            30.1~35.0     48                         SA
                                                      A        30˙35˙45
            35.1~42.0     55                         SA
                                                      A
                                          4          SA
            42.1~48.0     62     +0.051               A
                                 +0.032
                                                     SA        35˙45˙55
            48.1~55.0     70                          A




             內徑(d)的製作公差 Tolerance of I.D. (d)

            內徑(d)寸法 1.6~3.0 3.1~6.0 6.1~10.0 10.1~18.0 18.1~30.0 30.1~50.0 50.1~55.0

                          +0.008   +0.012   +0.014     +0.017     +0.020     +0.025     +0.029
              SA (G6)     +0.002   +0.004   +0.005     +0.006     +0.007     +0.009     +0.010
                 A        +0.025   +0.030   +0.036     +0.043     +0.052     +0.062     +0.074
                                                                             +0.009
                                                                                        +0.010
                                            +0.005
                                                                  +0.007
                          +0.002
                                   +0.004
                                                       +0.006
