BT-SLE

SLE 側固刀把-BT

側邊鎖緊式刀把
超強夾力,適用於各種重切削

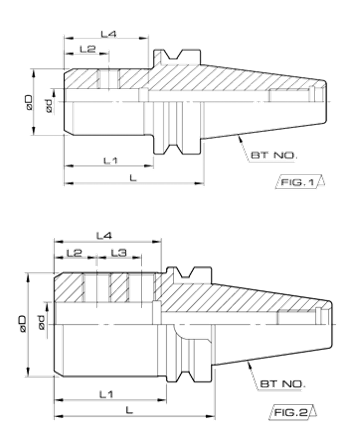

Dimensions

尺寸標示與詳細規格比較

Order No.
訂購編號
FIG∅d1∅DLL1L2L3L4Screw
止動螺絲
BT30(BTT30) SLE06-060162560381835SLA-M6
BT30(BTT30) SLE08-060182860381840SLA-M8
BT30(BTT30) SLE10-0601103560382050SLA-M10
BT30(BTT30) SLE12-06011242603822.555SLA-M12
BT30(BTT30) SLE16-0601164860382460SLA-M12
BT30(BTT30) SLE20-0751205275532560SLA-M16
BT30(BTT30) SLE25-07522545.57553252065SLA-M10
BT30(BTT30) SLE32-075232527553152050SLA-M10
Order No.
訂購編號
FIG∅d1∅DLL1L2L3L4Screw
止動螺絲
BT40(BTT40) SLE06-075162575481835SLA-M6
BT40(BTT40) SLE08-075182875481840SLA-M8
BT40(BTT40) SLE10-0751103575482050SLA-M10
BT40(BTT40) SLE12-07511242754822.555SLA-M12
BT40(BTT40) SLE16-0751164875482460SLA-M12
BT40(BTT40) SLE20-0751255275482560SLA-M16
BT40(BTT40) SLE25-090232579063242565SLA-M16
BT40(BTT40) SLE32-090232639063242870SLA-M16
BT40(BTT40) SLE40-1052407810578303080SLA-M16
Order No.
訂購編號
FIG∅d∅DLL1L2L3L4Screw
止動螺絲
BT50(BTT50) SLE10-0751103575372050SLA-M10
BT50(BTT50) SLE12-07511242753722.555SLA-M12
BT50(BTT50) SLE16-0901164890522460SLA-M12
BT50(BTT50) SLE20-0901205290522560SLA-M16
BT50(BTT50) SLE25-1052255710567242565SLA-M16
BT50(BTT50) SLE32-1052326310567242870SLA-M16
BT50(BTT50) SLE40-1202408012082303280SLA-M20
BT50(BTT50) SLE42-1202428012082303280SLA-M20
