Dimensions

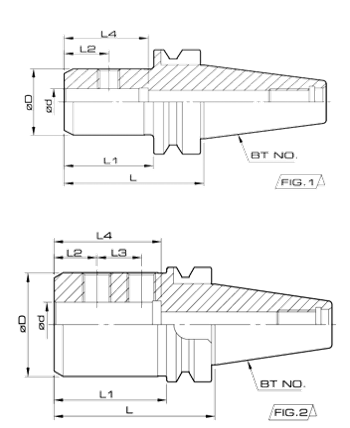

尺寸標示與詳細規格比較
| Order No. 訂購編號 | FIG | ∅d1 | ∅D | L | L1 | L2 | L3 | L4 | Screw 鎖緊螺絲 |
|---|---|---|---|---|---|---|---|---|---|
| BT30(BTT30) SLE06-060 | 1 | 6 | 25 | 60 | 38 | 18 | 35 | SLA-M6 | |
| BT30(BTT30) SLE08-060 | 1 | 8 | 28 | 60 | 38 | 18 | 40 | SLA-M8 | |
| BT30(BTT30) SLE10-060 | 1 | 10 | 35 | 60 | 38 | 20 | 50 | SLA-M10 | |
| BT30(BTT30) SLE12-060 | 1 | 12 | 42 | 60 | 38 | 22.5 | 55 | SLA-M12 | |
| BT30(BTT30) SLE16-060 | 1 | 16 | 48 | 60 | 38 | 24 | 60 | SLA-M12 | |
| BT30(BTT30) SLE20-075 | 1 | 20 | 52 | 75 | 53 | 25 | 60 | SLA-M16 | |
| BT30(BTT30) SLE25-075 | 2 | 25 | 45.5 | 75 | 53 | 25 | 20 | 65 | SLA-M10 |
| BT30(BTT30) SLE32-075 | 2 | 32 | 52 | 75 | 53 | 15 | 20 | 50 | SLA-M10 |
| Order No. 訂購編號 | FIG | ∅d1 | ∅D | L | L1 | L2 | L3 | L4 | Screw 鎖緊螺絲 |
|---|---|---|---|---|---|---|---|---|---|
| BT40(BTT40) SLE06-075 | 1 | 6 | 25 | 75 | 48 | 18 | 35 | SLA-M6 | |
| BT40(BTT40) SLE08-075 | 1 | 8 | 28 | 75 | 48 | 18 | 40 | SLA-M8 | |
| BT40(BTT40) SLE10-075 | 1 | 10 | 35 | 75 | 48 | 20 | 50 | SLA-M10 | |
| BT40(BTT40) SLE12-075 | 1 | 12 | 42 | 75 | 48 | 22.5 | 55 | SLA-M12 | |
| BT40(BTT40) SLE16-075 | 1 | 16 | 48 | 75 | 48 | 24 | 60 | SLA-M12 | |
| BT40(BTT40) SLE20-075 | 1 | 25 | 52 | 75 | 48 | 25 | 60 | SLA-M16 | |
| BT40(BTT40) SLE25-090 | 2 | 32 | 57 | 90 | 63 | 24 | 25 | 65 | SLA-M16 |
| BT40(BTT40) SLE32-090 | 2 | 32 | 63 | 90 | 63 | 24 | 28 | 70 | SLA-M16 |
| BT40(BTT40) SLE40-105 | 2 | 40 | 78 | 105 | 78 | 30 | 30 | 80 | SLA-M16 |
| Order No. 訂購編號 | FIG | ∅d | ∅D | L | L1 | L2 | L3 | L4 | Screw 鎖緊螺絲 |
|---|---|---|---|---|---|---|---|---|---|
| BT50(BTT50) SLE10-075 | 1 | 10 | 35 | 75 | 37 | 20 | 50 | SLA-M10 | |
| BT50(BTT50) SLE12-075 | 1 | 12 | 42 | 75 | 37 | 22.5 | 55 | SLA-M12 | |
| BT50(BTT50) SLE16-090 | 1 | 16 | 48 | 90 | 52 | 24 | 60 | SLA-M12 | |
| BT50(BTT50) SLE20-090 | 1 | 20 | 52 | 90 | 52 | 25 | 60 | SLA-M16 | |
| BT50(BTT50) SLE25-105 | 2 | 25 | 57 | 105 | 67 | 24 | 25 | 65 | SLA-M16 |
| BT50(BTT50) SLE32-105 | 2 | 32 | 63 | 105 | 67 | 24 | 28 | 70 | SLA-M16 |
| BT50(BTT50) SLE40-120 | 2 | 40 | 80 | 120 | 82 | 30 | 32 | 80 | SLA-M20 |
| BT50(BTT50) SLE42-120 | 2 | 42 | 80 | 120 | 82 | 30 | 32 | 80 | SLA-M20 |
