Dimensions

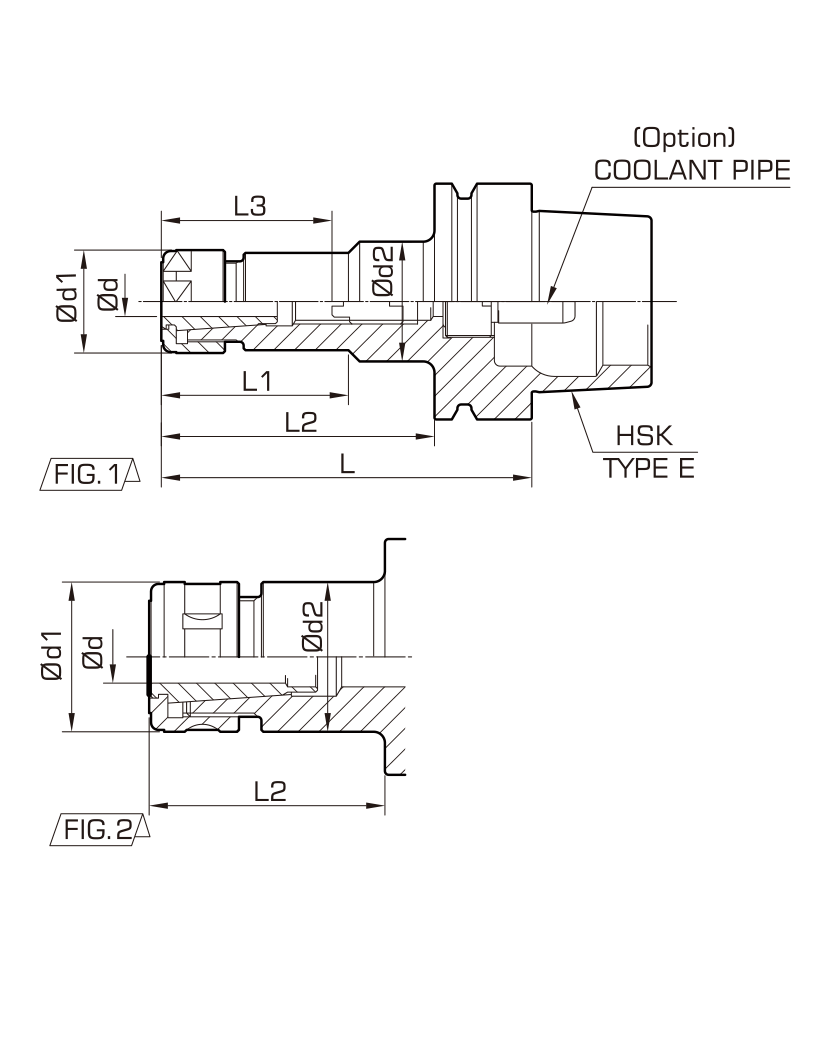

尺寸標示與詳細規格比較
| Order No. 訂購編號 | FIG | Range ∅d 夾持範圍 | ∅d1 | ∅d2 | L | L1 | L2 | Tool Clamping Depth L2 刀具夾持深度 | Nut 螺帽 | Screw 調整螺絲 | Collet 筒夾 | Wrench 扳手 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HSK40E PFK6-080 | 2 | 1.75~6.0 | 19.5 | 19.5 | 80 | 60 | 21~30 | CAP-PFK6 | PFK-M8 | SK6-P | PHS-PFK6 | |
| HSK40E PFK10-080 | 2 | 1.75~10.0 | 27.5 | 27.5 | 80 | 60 | max58.5 | CAP-PFK10 | SK10-P | PHS-PFK10 | ||
| HSK40E PFK16-080 | 2 | 2.75~16.0 | 40 | 40 | 80 | 60 | max49.5 | CAP-PFK16 | SK16-P | PHS-PFK16 |
| Order No. 訂購編號 | FIG | Range ∅d 夾持範圍 | ∅d1 | ∅d2 | L | L1 | L2 | Tool Clamping Depth L2 刀具夾持深度 | Nut 螺帽 | Screw 調整螺絲 | Collet 筒夾 | Wrench 扳手 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HSK50E PFK6-100 | 1 | 1.75~6.0 | 19.5 | 32 | 100 | 63 | 74 | 21~35 | CAP-PFK6 | PFK-M8 | SK6-P | PHS-PFK6 |
| HSK50E PFK10-100 | 2 | 1.75~10.0 | 27.5 | 27.5 | 100 | 74 | 30~40 | CAP-PFK10 | PFK-M12 | SK10-P | PHS-PFK10 | |
| HSK50E PFK16-100 | 2 | 2.75~16.0 | 40 | 40 | 100 | 74 | 40~48 | CAP-PFK16 | PFK-M12 | SK16-P | PHS-PFK16 |
備註 Remarks
- 需配合3μ P 筒夾 With 3μ P Grade Collet
