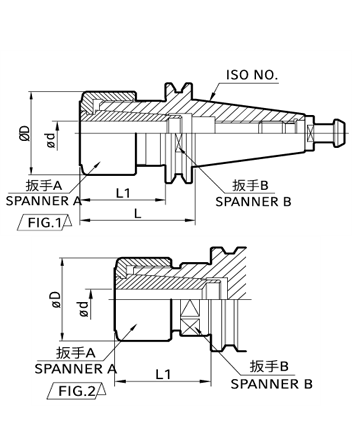

Dimensions
尺寸標示與詳細規格比較
| Order No. 訂購編號 | FIG | Range ∅d 夾持範圍 | ∅D | L | L1 | Pull Stud 拉桿 | Nut 螺帽 | Collet 筒夾 | Wrench 扳手A | Wrench 扳手B |
|---|---|---|---|---|---|---|---|---|---|---|
| ISO20 PFK10-035S | 1 | 1.75~10.0 | 27.5 | 35 | 26 | PSD-PI20T-42 | CAP-PFK10S | SK10-P | PHS-10-TW275 | PHS-ISO20 |
| Order No. 訂購編號 | FIG | Range ∅d 夾持範圍 | ∅D | L | L1 | Pull Stud 拉桿 | Nut 螺帽 | Collet 筒夾 | Wrench 扳手A | Wrench 扳手B |
|---|---|---|---|---|---|---|---|---|---|---|
| ISO25 PFK10-035S | 1 | 1.75~10.0 | 27.5 | 35 | 26.2 | PSD-PI25T-42 | CAP-PFK10S | SK10-P | PHS-10-TW275 | PHS-ISO25 |
| Order No. 訂購編號 | FIG | Range ∅d 夾持範圍 | ∅D | L | L1 | Pull Stud 拉桿 | Nut 螺帽 | Collet 筒夾 | Wrench 扳手A | Wrench 扳手B |
|---|---|---|---|---|---|---|---|---|---|---|
| ISO30 PFK10-060S | 1 | 1.75~10.0 | 27.5 | 60 | 40.9 | PSD-PI30T-42 | CAP-PFK10S | SK10-P | PHS-10-TW275 | PHS-PFK10 |
| ISO30 PFK16-060S | 2 | 2.75~16.0 | 40 | 60 | 40.9 | PSD-PI30T-42 | CAP-PFK16S | SK16-P | PHS-20-RO400 | PHS-ISO30 |
備註 Remarks
- 需配合3µ HP筒夾 With 3µ HP Grade Collet
