BT-CR

CR 標準型熱縮刀把-BT

BT30/BT40/BT50
偏擺跳動≦0.003mm
經特殊熱處理製程，可保持最佳精度及壽命
刀具360°全周完整夾持，剛性可大幅提升
超強夾持力，粗精加工皆可對應
全系列動平衡
熱縮機備有高階型/經濟型款式

動平衡

BT30/BT40 Max.25,000 RPM Or U<= 1gmm

BT50 Max.20,000 RPM Or U<= 1gmm

BT30/BT40 Max.25,000 RPM Or U<= 1gmm

BT50 Max.20,000 RPM Or U<= 1gmm

規格書下載性能特色

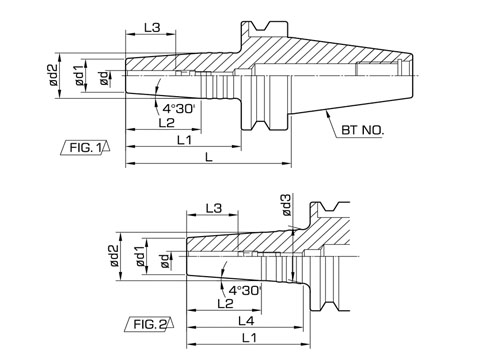

Dimensions

尺寸標示與詳細規格比較

Order No. 訂購編號	FIG	∅d	∅d1	∅d2	L	L1	L2	Tool Clamping Depth L3 刀具夾持深度	Screw 調整螺絲
BT30(BTT30) CR04-080	1	4	14	23	80	58	40.7	min15
BT30(BTT30) CR06-080	1	6	20	27	80	58	40.7	25.5~31.5	HY06-M5
BT30(BTT30) CR08-080	1	8	20	27	80	58	40.7	30.5~35.5	HY08-M6
BT30(BTT30) CR10-080	1	10	24	32	80	58	50.8	36.5~41.5	HY08-M6
BT30(BTT30) CR12-080	1	12	24	32	80	58	50.8	41.5~46.5	HY14-M8
BT30(BTT30) CR16-080	1	16	27	34	80	58	40.7	44.5~49.5	HY18-M12

Order No. 訂購編號	FIG	∅d	∅d1	∅d2	∅d3	L	L1	L2	Tool Clamping Depth L3 刀具夾持深度	L4	Screw 調整螺絲
BT40(BTT40) CR04-090	1	4	14	21		90	63	40.7	min15
BT40(BTT40) CR04-130	2	4	14	21	25.1	130	103	44.5	min15	100.2
BT40(BTT40) CR04-160	2	4	14	21	28.3	160	133	44.5	min15	130.2
BT40(BTT40) CR06-090	1	6	21	27		90	63	40.7	25.5~31.5		HY06-M5
BT40(BTT40) CR06-130	2	6	21	27	31.1	130	103	44.5	25.5~31.5	100.2	HY06-M5
BT40(BTT40) CR06-160	2	6	21	27	34.3	160	133	44.5	25.5~31.5	130.2	HY06-M5
BT40(BTT40) CR08-090	1	8	21	27		90	63	40.7	30.5~35.5		HY08-M6
BT40(BTT40) CR08-130	2	8	21	27	31.1	130	103	44.5	30.5~35.5	100.2	HY08-M6
BT40(BTT40) CR08-160	2	8	21	27	34.3	160	133	44.5	30.5~35.5	130.2	HY08-M6
BT40(BTT40) CR10-090	1	10	24	32		90	63	47	36.5~41.5		HY08-M6
BT40(BTT40) CR10-130	2	10	24	32	35.6	130	103	50.8	36.5~41.5	100.2	HY08-M6
BT40(BTT40) CR10-160	2	10	24	32	38.7	160	133	50.8	36.5~41.5	130.2	HY08-M6
BT40(BTT40) CR12-090	1	12	24	32		90	63		41.5~46.5		HY14-M8
BT40(BTT40) CR12-130	2	12	24	32	35.6	130	103	50.8	41.5~46.5	100.2	HY14-M8
BT40(BTT40) CR12-160	2	12	24	32	38.7	160	133	50.8	41.5~46.5	130.2	HY14-M8
BT40(BTT40) CR16-090	1	16	27	34		90	63	40.7	44.5~49.5		HY18-M12
BT40(BTT40) CR16-130	2	16	27	34	38.1	130	103	44.5	44.5~49.5	100.2	HY18-M12
BT40(BTT40) CR16-160	2	16	27	34	41.3	160	133	44.5	44.5~49.5	130.2	HY18-M12
BT40(BTT40) CR20-090	1	20	33	42		90	63	57.2	46.5~51.5		HY18-M12
BT40(BTT40) CR20-130	2	20	33	42	45.3	130	103	57.2	46.5~51.5	100.2	HY18-M12
BT40(BTT40) CR20-160	2	20	33	42	46.3	160	133	57.2	46.5~51.5	132.1	HY18-M12
BT40(BTT40) CR25-100	1	25	44	53		100	73	51.5	52.5~57.5		HY25-M16
BT40(BTT40) CR25-130	1	25	44	53		130	103	51.5	52.5~57.5		HY25-M16
BT40(BTT40) CR25-160	1	25	44	53		160	133	51.5	52.5~57.5		HY25-M16
BT40(BTT40) CR32-100	1	32	44	53		100	73	51.5	55.5~60.5		HY25-M16
BT40(BTT40) CR32-130	1	32	44	53		130	103	51.5	55.5~60.5		HY25-M16
BT40(BTT40) CR32-160	1	32	44	53		160	133	51.5	55.5~60.5		HY25-M16

Order No. 訂購編號	FIG	∅d	∅d1	∅d2	∅d3	L	L1	L2	Tool Clamping Depth L3 刀具夾持深度	L4	Screw 調整螺絲
BT50(BTT50) SCR06-100	1	6	21	27		100	62	34.3	25.5~31.5		HY06-M5
BT50(BTT50) SCR06-130	2	6	21	27	29.5	130	92	38.1	25.5~31.5	84.4	HY06-M5
BT50(BTT50) SCR06-160	2	6	21	27	32.4	160	122	38.1	25.5~31.5	112.5	HY06-M5
BT50(BTT50) SCR08-100	1	8	21	27		100	62	34.3	30.5~35.5		HY08-M6
BT50(BTT50) SCR08-130	2	8	21	27	29.5	130	92	38.1	30.5~35.5	84.4	HY08-M6
BT50(BTT50) SCR08-160	2	8	21	27	32.4	160	122	38.1	30.5~35.5	112.5	HY08-M6
BT50(BTT50) SCR10-100	1	10	24	32		100	62	47	36.5~41.5		HY08-M6
BT50(BTT50) SCR10-130	2	10	24	32	34.5	130	92	50.8	36.5~41.5	84.4	HY08-M6
BT50(BTT50) SCR10-160	2	10	24	32	36.9	160	122	50.8	36.5~41.5	112.5	HY08-M6
BT50(BTT50) SCR12-100	1	12	24	32		100	62	47	41.5~46.5		HY14-M8
BT50(BTT50) SCR12-130	2	12	24	32	34.5	130	92	50.8	41.5~46.5	84.4	HY14-M8
BT50(BTT50) SCR12-160	2	12	24	32	36.9	160	122	50.8	41.5~46.5	112.5	HY14-M8
BT50(BTT50) SCR16-100	1	16	27	34		100	62	40.7	44.5~49.5		HY18-M12
BT50(BTT50) SCR16-130	2	16	27	34	36.5	130	92	44.5	44.5~49.5	84.4	HY18-M12
BT50(BTT50) SCR16-160	2	16	27	34	39.4	160	122	44.5	44.5~49.5	112.5	HY18-M12
BT50(BTT50) SCR20-100	1	20	33	42		100	62	57.2	46.5~51.5		HY18-M12
BT50(BTT50) SCR20-130	2	20	33	42	43.9	130	92	5732	46.5~51.5	84.4	HY18-M12
BT50(BTT50) SCR20-160	2	20	33	42	45.3	160	122	57.2	46.5~51.5	112.5	HY18-M12
BT50(BTT50) SCR25-100	1	25	44	53		100	62	55.9	52.5~57.5		HY25-M16
BT50(BTT50) SCR25-130	1	25	44	53		130	92	52.1	52.5~57.5		HY25-M16
BT50(BTT50) SCR25-160	2	25	44	53	56.1	160	122	55.9	52.5~57.5	112.5	HY25-M16
BT50(BTT50) SCR32-100	1	32	44	53		100	62	55.9	55.5~60.5		HY25-M16
BT50(BTT50) SCR32-130	1	32	44	53		130	92	52.1	55.5~60.5		HY25-M16
BT50(BTT50) SCR32-160	2	32	44	53	56.1	160	122	55.9	55.5~60.5	112.5	HY25-M16

備註 Remarks

刀具柄徑公差 h6( h6 Tooling Diameter Tolerance)
若需出水型刀把，請參考選用說明
