BTT-PFK

PFK 筒夾刀把-BTT

偏擺跳動≦0.005mm(4倍長)
筒夾採用單邊4°角度設計並提高刀把夾持力
採全圓式螺帽,可減少風阻提高穩定度

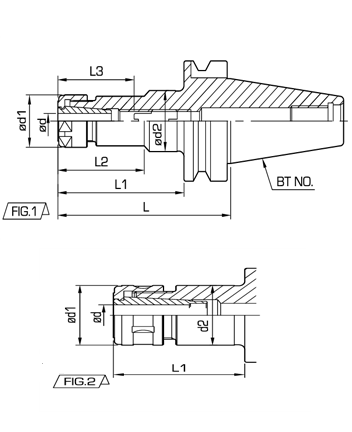

Dimensions

尺寸標示與詳細規格比較

Order No.
訂購編號
FIGRange ∅d
夾持範圍
∅d1∅d2LL1L2Tool Clamping
Depth L3
刀具夾持深度
Nut
螺帽
Screw
調整螺絲
Collet
筒夾
Wrench
扳手
BT30(BTT30) PFK6-06021.75~6.019.519.5603821~35CAP-PFK6PFK-M8SK6-PPHS-PFK6
BT30(BTT30) PFK6-0901 1.75~6.019.53290686121~35CAP-PFK6PFK-M8SK6-PPHS-PFK6
BT30(BTT30) PFK6-1201 1.75~6.019.532120986321~35CAP-PFK6PFK-M8SK6-PPHS-PFK6
BT30(BTT30) PFK10-06021.75~10.027.527.5603830~50CAP-PFK10PFK-M12SK10-PPHS-PFK10
BT30(BTT30) PFK10-09021.75~10.027.527.5906830~50CAP-PFK10PFK-M12SK10-PPHS-PFK10
BT30(BTT30) PFK10-12021.75~10.027.527.51209830~50CAP-PFK10PFK-M12SK10-PPHS-PFK10
BT30(BTT30) PFK16-06022.75~16.04040603840~54CAP-PFK16PFK-M12SK16-PPHS-PFK16
BT30(BTT30) PFK16-09022.75~16.04040906840~70CAP-PFK16PFK-M12SK16-PPHS-PFK16
BT30(BTT30) PFK16-12022.75~16.040401209840~70CAP-PFK16PFK-M18SK16-PPHS-PFK16
BT30(BTT30) PFK25-09026.0~25.45554906850~80CAP-PFK25PFK-M12SK25-PPHS-PFK25
Order No.
訂購編號
FIGRange ∅d
夾持範圍
∅d1∅d2LL1L2Tool Clamping
Depth L3
刀具夾持深度
Nut
螺帽
Screw
調整螺絲
Collet
筒夾
Wrench
扳手
BT40(BTT40) PFK6-0602 1.75~6.019.519.5603321~35CAP-PFK6PFK-M8SK6-PPHS-PFK6
BT40(BTT40) PFK6-0902 1.75~6.019.519.5906321~35CAP-PFK6PFK-M8SK6-PPHS-PFK6
BT40(BTT40) PFK6-1201 1.75~6.019.5321209321~35CAP-PFK6PFK-M8SK6-PPHS-PFK6
BT40(BTT40) PFK6-1501 1.75~6.019.5321501236321~35CAP-PFK6PFK-M8SK6-PPHS-PFK6
BT40(BTT40) PFK10-06021.75~10.027.527.560336330~50CAP-PFK10PFK-M12SK10-PPHS-PFK10
BT40(BTT40) PFK10-09021.75~10.027.527.5906330~50CAP-PFK10PFK-M12SK10-PPHS-PFK10
BT40(BTT40) PFK10-12011.75~10.027.5321209330~50CAP-PFK10PFK-M12SK10-PPHS-PFK10
BT40(BTT40) PFK10-15021.75~10.027.5321501237030~50CAP-PFK10PFK-M12SK10-PPHS-PFK10
BT40(BTT40) PFK16-06022.75~16.0404060337050~65CAP-PFK16PFK-M18SK16-PPHS-PFK16
BT40(BTT40) PFK16-09022.75~16.04040906340~70CAP-PFK16PFK-M18SK16-PPHS-PFK16
BT40(BTT40) PFK16-12022.75~16.040401209340~70CAP-PFK16PFK-M18SK16-PPHS-PFK16
BT40(BTT40) PFK16-15022.75~16.0404015012340~70CAP-PFK16PFK-M18SK16-PPHS-PFK16
BT40(BTT40) PFK25-09026.0~25.45555906350~70CAP-PFK25PFK-M28SK25-PPHS-PFK25
BT40(BTT40) PFK25-12024055551209350~85CAP-PFK25PFK-M28SK25-PPHS-PFK25
Order No.
訂購編號
FIGRange ∅d
夾持範圍
∅d1∅d2LL1L2Tool Clamping
Depth L3
刀具夾持深度
Nut
螺帽
Screw
調整螺絲
Collet
筒夾
Wrench
扳手
BT50(BTT50) PFK6-1052 1.75~6.019.519.51056721~35CAP-PFK6PFK-M8SK6-PPHS-PFK6
BT50(BTT50) PFK6-1351 1.75~6.019.532135639721~35CAP-PFK6PFK-M8SK6-PPHS-PFK6
BT50(BTT50) PFK6-1651 1.75~6.019.5321656312721~35CAP-PFK6PFK-M8SK6-PPHS-PFK6
BT50(BTT50) PFK10-10521.75~10.027.527.51056730~50CAP-PFK10PFK-M12SK10-PPHS-PFK10
BT50(BTT50) PFK10-13511.75~10.027.532135977030~50CAP-PFK10PFK-M12SK10-PPHS-PFK10
BT50(BTT50) PFK10-16511.75~10.027.5321651277530~50CAP-PFK10PFK-M12SK10-PPHS-PFK10
BT50(BTT50) PFK16-10522.75~16.040401056740~70CAP-PFK16PFK-M18SK16-PPHS-PFK16
BT50(BTT50) PFK16-13522.75~16.040401359740~70CAP-PFK16PFK-M18SK16-PPHS-PFK16
BT50(BTT50) PFK16-16512.75~16.040501651279040~70CAP-PFK16PFK-M18SK16-PPHS-PFK16
BT50(BTT50) PFK25-10526.0~25.455551056750~85CAP-PFK25PFK-M28SK25-PPHS-PFK25
BT50(BTT50) PFK25-13526.0~25.455551359750~85CAP-PFK25PFK-M28SK25-PPHS-PFK25
BT50(BTT50) PFK25-16526.0~25.4555516512750~85CAP-PFK25PFK-M28SK2-5PPHS-PFK25
