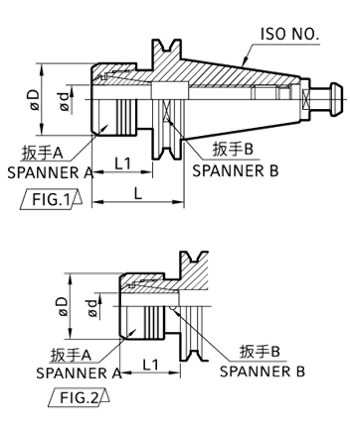

Dimensions
尺寸標示與詳細規格比較
| Order No. 訂購編號 | FIG | Range ∅d 夾持範圍 | øD | L | L1 | Pull Stud 拉桿 | Nut 螺帽 | Collet 筒夾 | Wrench 板手A | Wrench 板手B |
|---|---|---|---|---|---|---|---|---|---|---|
| ISO20 HER16-035 | 1 | 1.0~10.0 | 30 | 35 | 26 | PSD-PI20T-42 | CAP-HER16 | ER16-HP | PHS-20-RO300 | PHS-ISO20 |
| Order No. 訂購編號 | FIG | Range ∅d 夾持範圍 | øD | L | L1 | Pull Stud 拉桿 | Nut 螺帽 | Collet 筒夾 | Wrench 板手A | Wrench 板手B |
|---|---|---|---|---|---|---|---|---|---|---|
| ISO25 HER16-035 | 1 | 1.0~10.0 | 30 | 35 | 26.2 | PSD-PI20T-42 | CAP-HER16 | ER16-HP | PHS-HER16-RO30 | PHS-ISO25 |
| Order No. 訂購編號 | FIG | Range ∅d 夾持範圍 | øD | L | L1 | Pull Stud 拉桿 | Nut 螺帽 | Collet 筒夾 | Wrench 板手A | Wrench 板手B |
|---|---|---|---|---|---|---|---|---|---|---|
| ISO30 HER16-060 | 2 | 1.0~10.0 | 30 | 60 | 40.9 | PSD-PI30T-42 | CAP-HER16 | ER16-HP | PHS-20-RO300 | |
| ISO30 HER20-060 | 2 | 1.0~13.0 | 32 | 60 | 40.9 | PSD-PI30T-42 | CAP-HER20 | ER20-HP | PHS-20-RO320 | |
| ISO30 HER25-060 | 2 | 1.0~16.0 | 40 | 60 | 40.9 | PSD-PI30T-42 | CAP-HER25 | ER25-HP | PHS-20-RO400 |
備註 Remarks
- 需配合3µ HP筒夾 With 3µ HP Grade Collet
- 若需出水型刀把，請參考選用說明
- 筒夾夾持為一對一整數值
- ISO20/ISO25/ISO30
