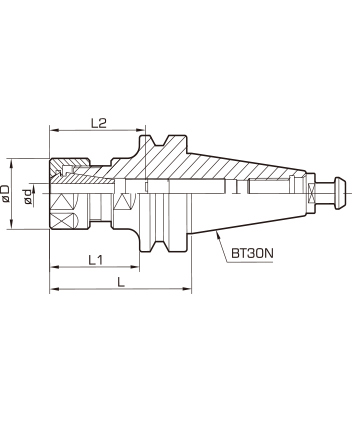

Dimensions
尺寸標示與詳細規格比較
| Order No. 訂購編號 | Range ∅d 夾持範圍 | ∅D | L | L1 | Tool Clamping Depth L2 刀具夾持深度 | Nut 螺帽 | Screw 調整螺絲 | Collet 筒夾 | Wrench 扳手 |
|---|---|---|---|---|---|---|---|---|---|
| BT30N ER16-060 | 0.6~10.0 | 28 | 60 | 38 | 29~58 | CAP-ER16 | ER-M11 | ER16 | PHS-HER16 |
| BT30N ER20-060 | 0.6~13.0 | 34 | 60 | 38 | 32~63 | CAP-ER20 | ER-M14 | ER20 | PHS-HER20 |
| BT30N ER25-075 | 0.6~16.0 | 42 | 75 | 53 | 35~78 | CAP-ER25 | ER-M18 | ER25 | PHS-HER25 |
備註 Remarks
- 若需出水型刀把，請參考選用說明
