HSK-A-ER

ER 筒夾刀把-HSK-A

通用性高,可配合各種不同加工

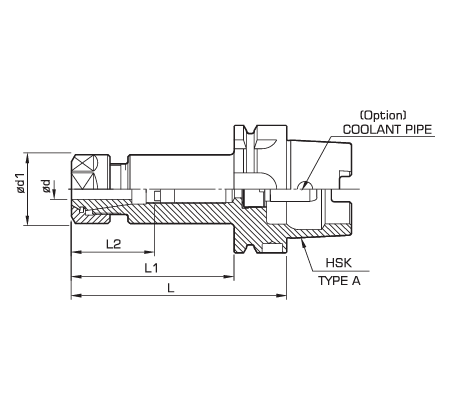

Dimensions

尺寸標示與詳細規格比較

Order No.
訂購編號
Range ∅d
夾持範圍
∅d1LL1Tool Clamping
Depth L2
刀具夾持深度
Nut
螺帽
Screw
調整螺絲
Collet
筒夾
Wrench
扳手
HSK50A ER16-1000.6~10.0281007429~58CAP-ER16ER-M11 ER16 PHS-ER16
HSK50A ER32-1001.6~20.0501007441~56CAP-ER32ER-M22 ER32 PHS-ER32
Order No.
訂購編號
Range ∅d
夾持範圍
∅d1LL1Tool Clamping
Depth L2
刀具夾持深度
Nut
螺帽
Screw
調整螺絲
Collet
筒夾
Wrench
扳手
HSK63A ER16-1000.6~10.0281007429~58CAP-ER16ER-M11 ER16 PHS-ER16
HSK63A ER16-1600.6~10.02816013429~58CAP-ER16ER-M11 ER16 PHS-ER16
HSK63A ER25-1000.6~16.0421007435~55CAP-ER25ER-M18 ER25 PHS-ER25
HSK63A ER25-1600.6~16.04216013435~73CAP-ER25ER-M18 ER25 PHS-ER25
HSK63A ER32-1001.6~20.0501007441~54CAP-ER32ER-M22 ER32 PHS-ER32
HSK63A ER32-1601.6~20.05016013441~78CAP-ER32ER-M22 ER32 PHS-ER32
HSK63A ER40-1202.6~26.0631209450~68CAP-ER40ER-M28 ER40 PHS-ER40
Order No.
訂購編號
Range ∅d
夾持範圍
∅d1LL1Tool Clamping
Depth L2
刀具夾持深度
Nut
螺帽
Screw
調整螺絲
Collet
筒夾
Wrench
扳手
HSK100A ER16-1000.6~10.0281007129~54CAP-ER16ER-M11 ER16 PHS-ER16
HSK100A ER16-1600.6~10.02816013129~58CAP-ER16ER-M11ER16 PHS-ER16
HSK100A ER25-1000.6~16.0421007135~50CAP-ER25ER-M18ER25 PHS-ER25
HSK100A ER25-1600.6~16.04216013135~73CAP-ER25ER-M18 ER25 PHS-ER25
HSK100A ER32-1001.6~20.0501007141~49CAP-ER32ER-M22 ER32 PHS-ER32
HSK100A ER32-1601.6~20.05016013141~78CAP-ER32ER-M22 ER32 PHS-ER32
HSK100A ER40-1202.6~26.0631209750~68CAP-ER40ER-M28 ER40 PHS-ER40
