BTN-ER

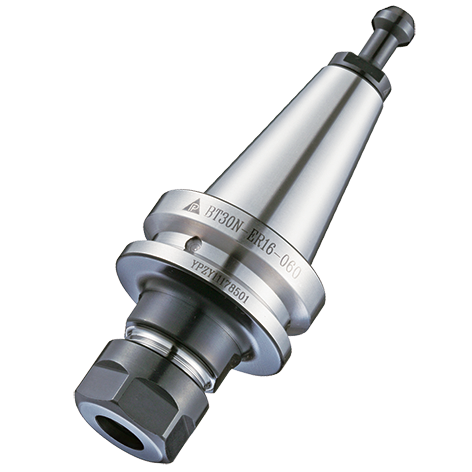

ER Collet Tool Holder-BTN
High versatility, can cooperate with various processing
動平衡 Balancing
Max.30,000 RPM Or U<= 1gmm
Max.30,000 RPM Or U<= 1gmm
Dimensions
Comparison of size indication and detailed specifications
| Order No. Order number | Range ∅d Clamping range | ∅d1 | L | L1 | Tool Clamping Depth L2 Tool clamping depth | Nut Nut | Screw Adjustment screw | Collet | Wrench wrench |
|---|---|---|---|---|---|---|---|---|---|
| BT30N ER16-060 | 0.6~10.0 | 28 | 60 | 38 | 29~58 | CAP-ER16 | ER-M11 | ER16 | PHS-HER16 |
| BT30N ER20-060 | 0.6~13.0 | 34 | 60 | 38 | 32~63 | CAP-ER20 | ER-M14 | ER20 | PHS-HER20 |
| BT30N ER25-075 | 0.6~16.0 | 42 | 75 | 53 | 35~78 | CAP-ER25 | ER-M18 | ER25 | PHS-HER25 |
Remarks
- If you need a water outlet knife handle, please refer toSelection instructions
